Parts & Systems Gallery

Photos of key components, systems, and reference points on the BYD e6. Captions identify what is shown and where relevant, which variant or model year it applies to.

BYD e6 battery pack
The BYD e6 battery pack, showing the modular LiFePO4 construction.
BYD e6 Battery Interface Controller (BIC)
A Battery Interface Controller (BIC), the module-level unit in BYD's distributed BMS system. One is fitted to each of the ten battery modules.

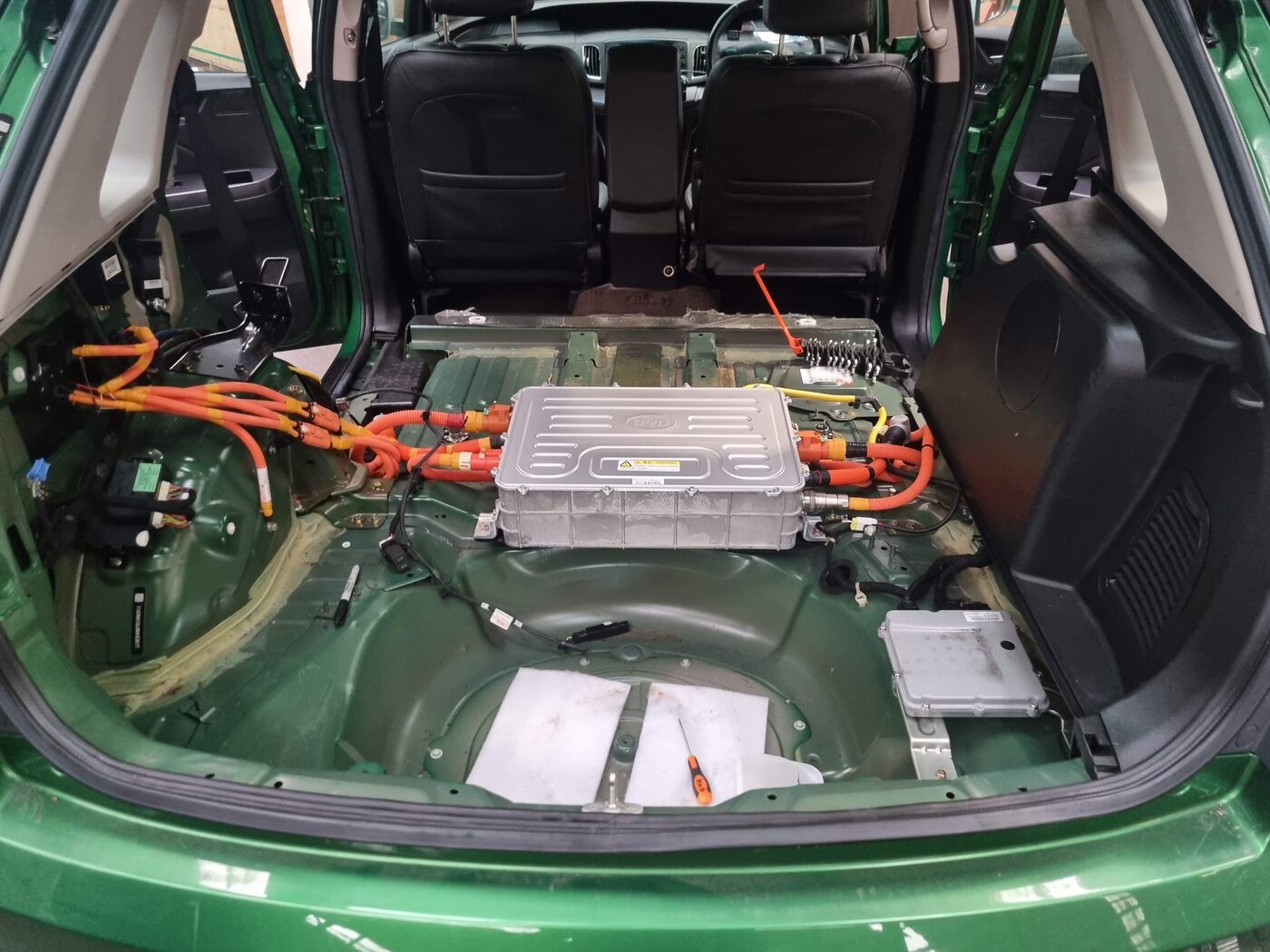

BYD e6 contactor box and central BMS unit
The contactor box and central BMS unit, located in the boot. The BMS coordinates the ten BICs and manages the battery pack as a whole.
BYD e6 main inverter and DC-DC converter
The main inverter (left) and DC-DC converter (right).

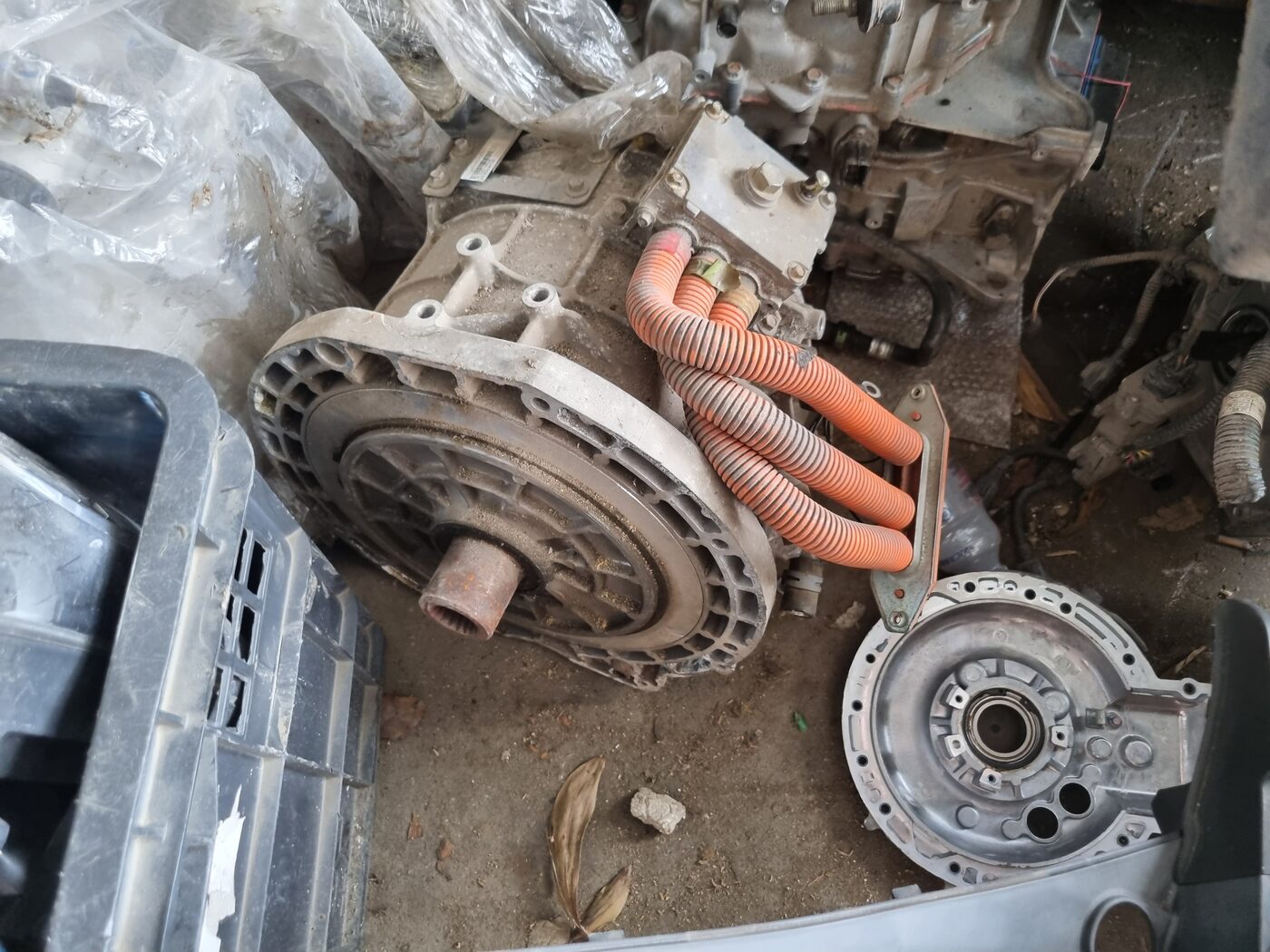

BYD e6 traction motor
The BYD e6 traction motor, a three-phase AC permanent magnet unit producing approximately 90 kW and 450 Nm.

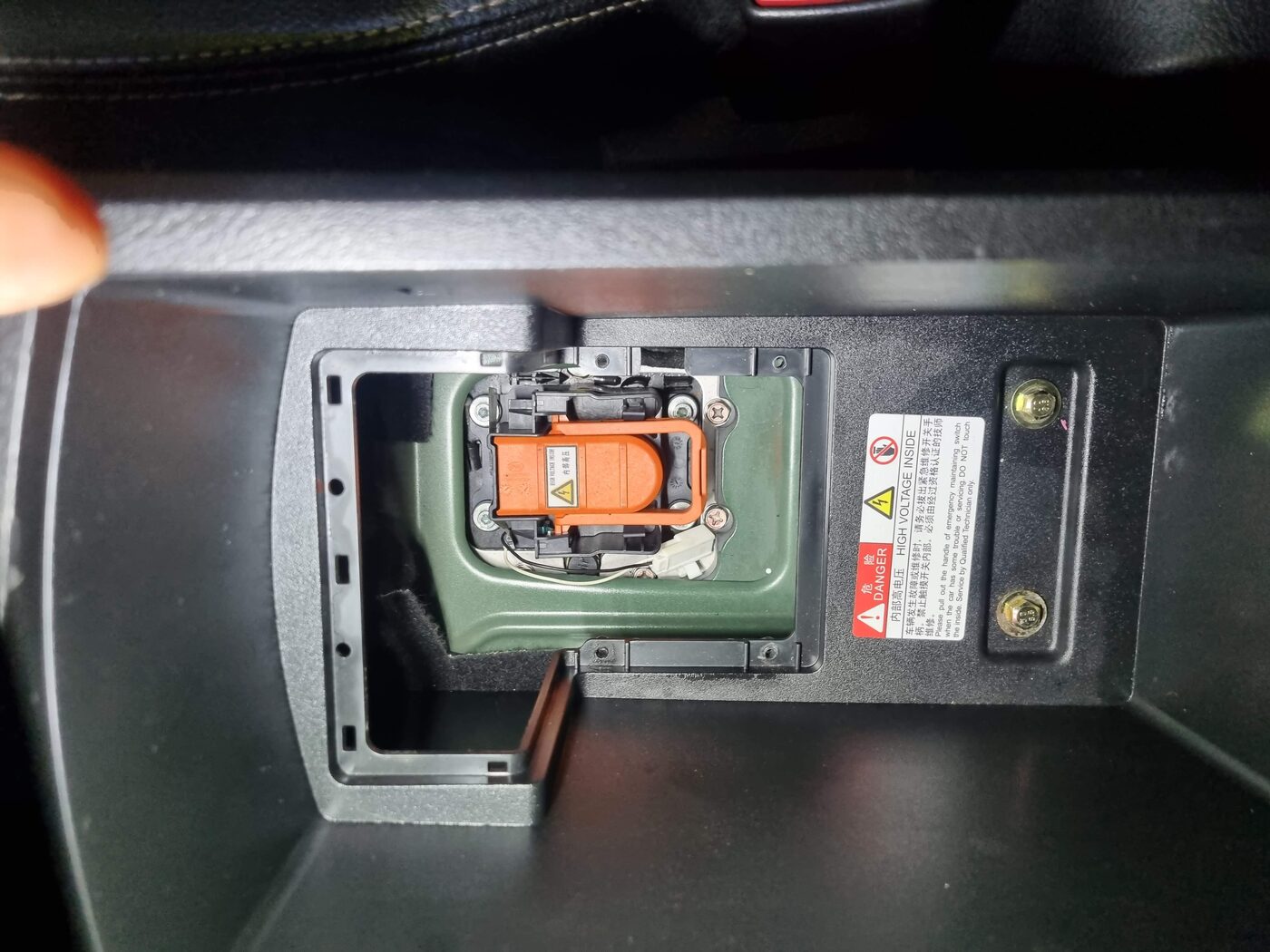

BYD e6 contact breaker
The main battery contact breaker, located beneath the centre console under a plastic cover.

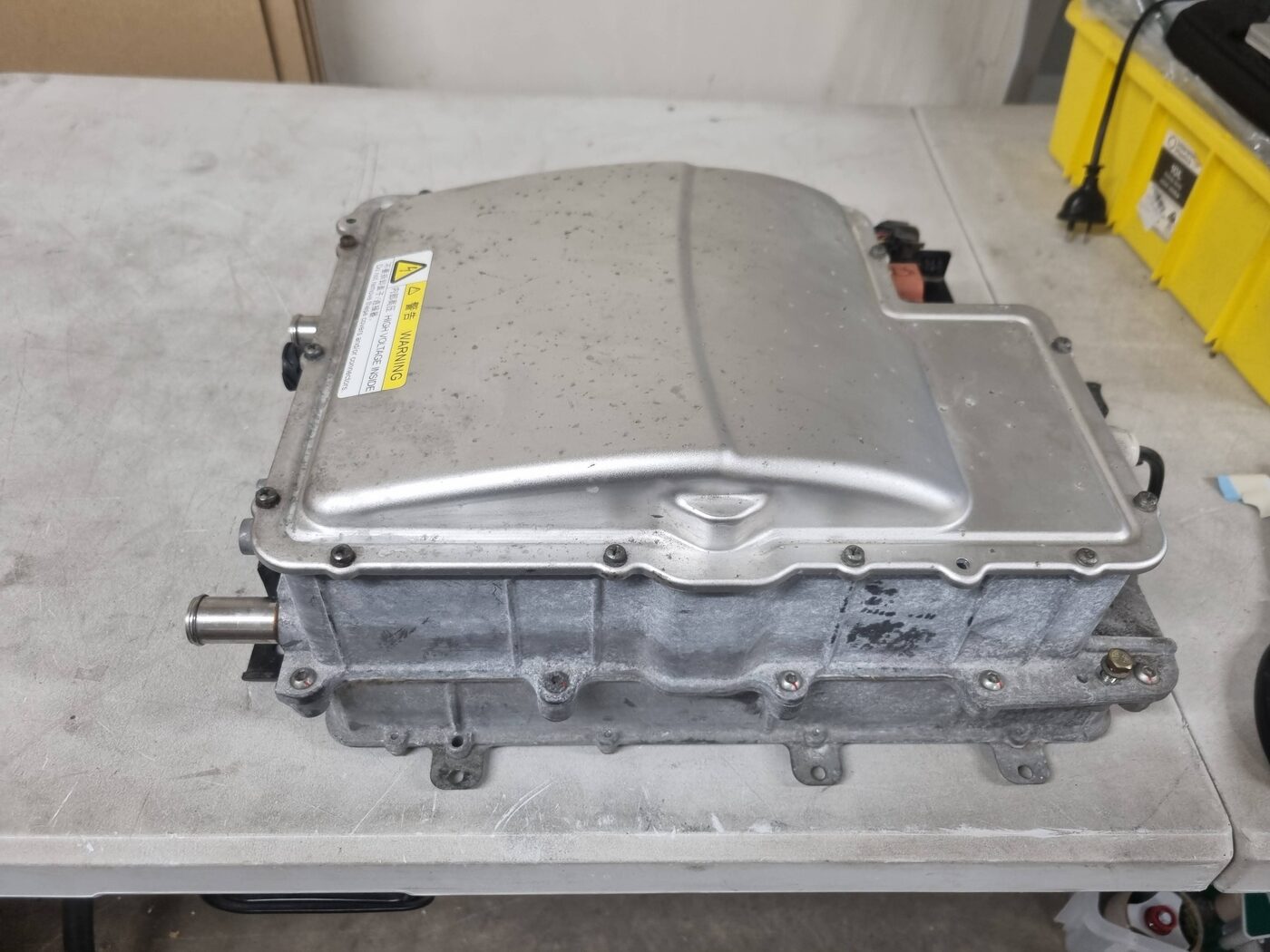

BYD e6 DC-DC converter
The DC-DC converter, which steps down high-voltage pack voltage to various lower voltages for the power steering, air conditioning and 12 V for the auxiliary systems.

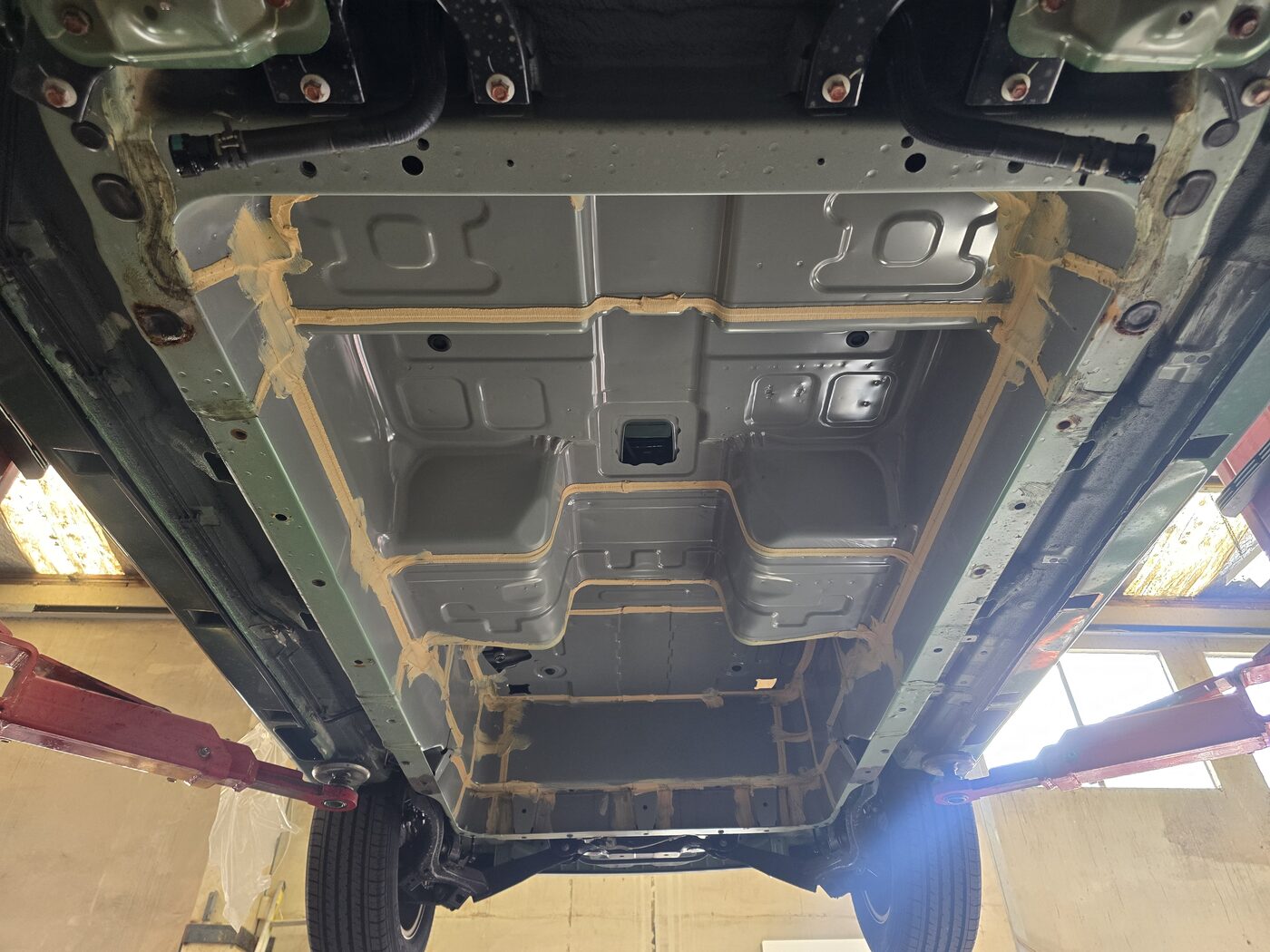

BYD e6 with battery removed
Car with Battery Removed. The battery pack sits beneath the cabin floor and is removed from underneath the vehicle.

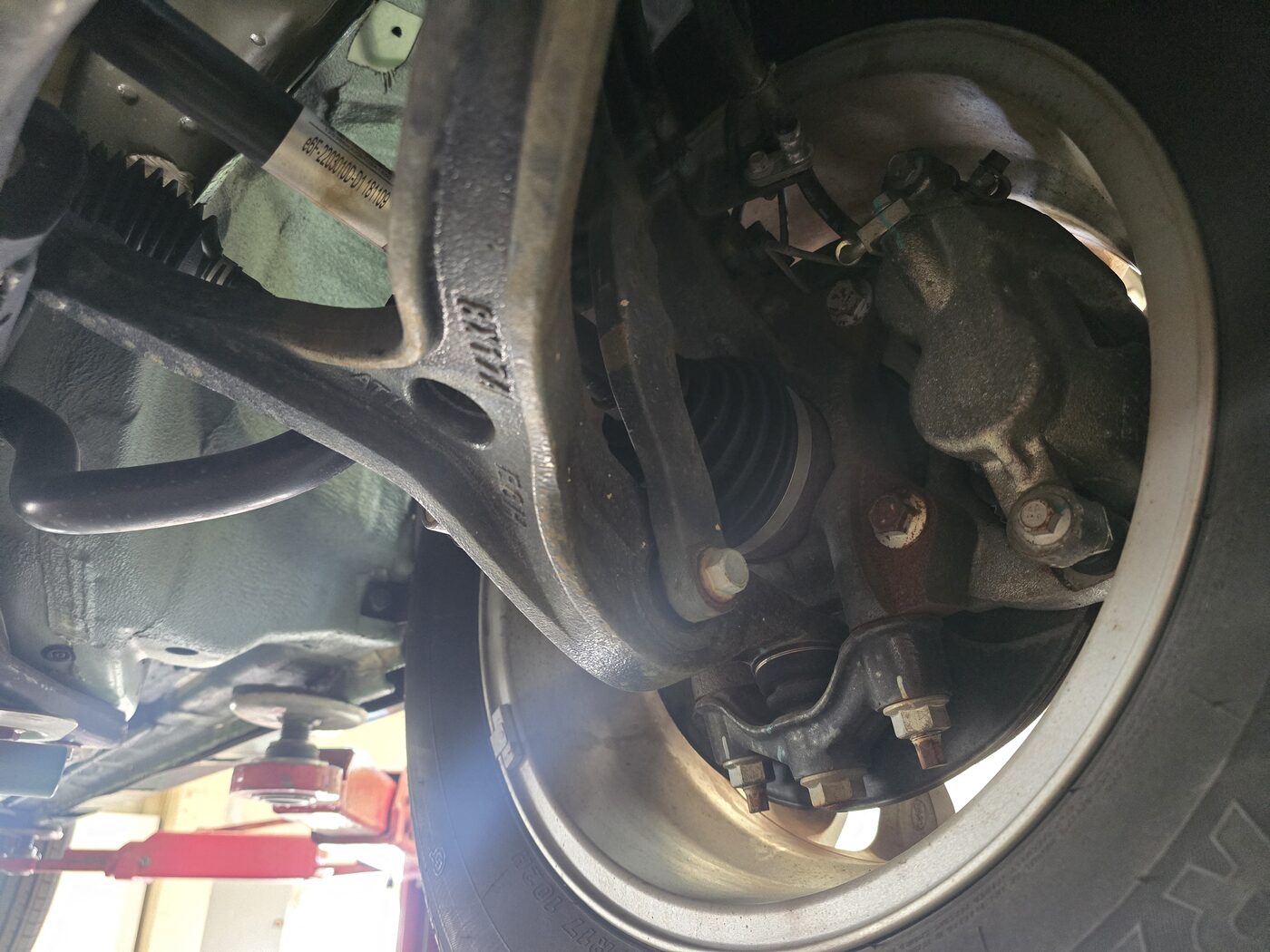

BYD e6 front control arms and brakes
Front Control Arms and Brakes.

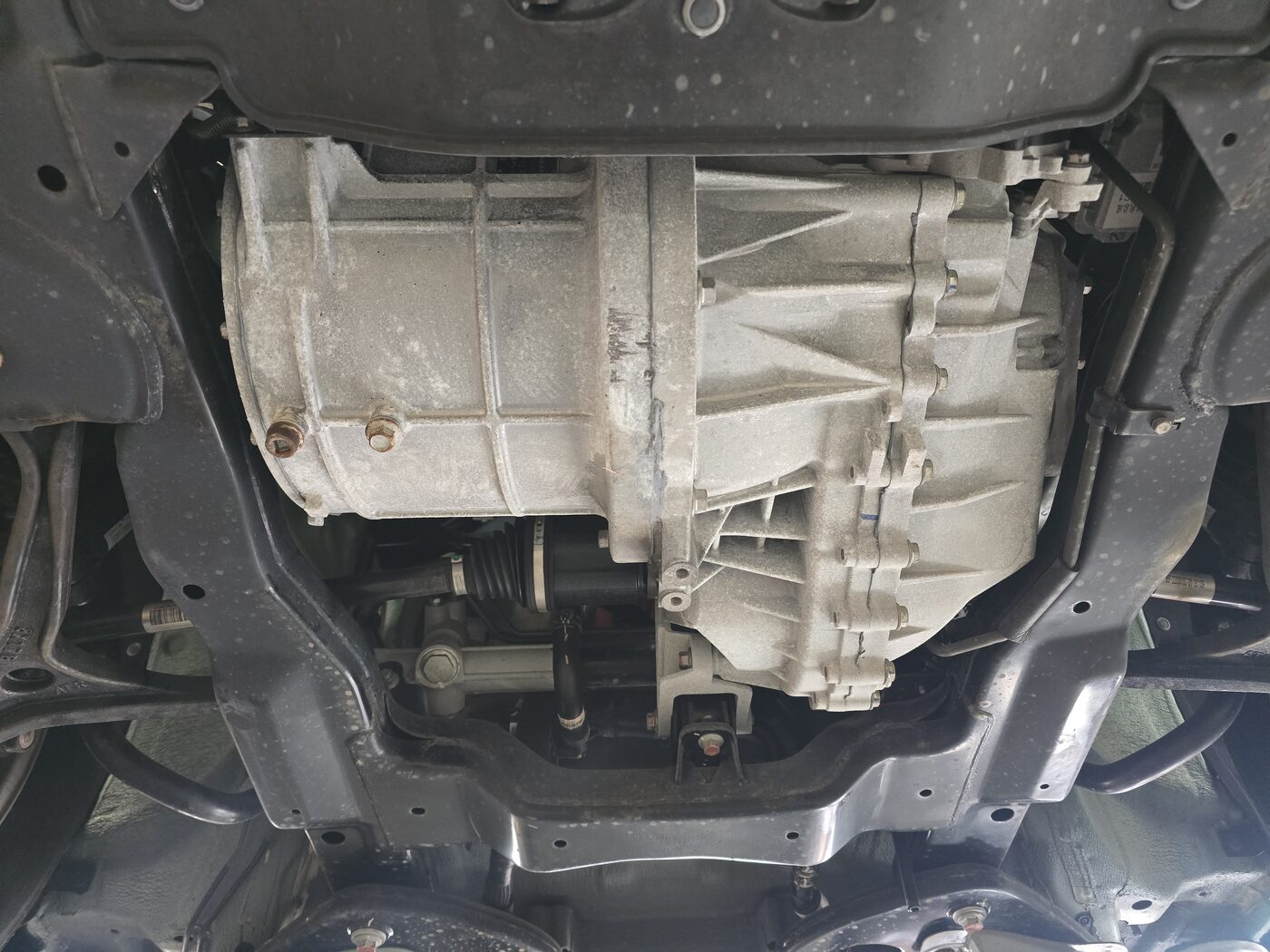

BYD e6 motor and gearbox
Motor and Gearbox. The single-speed reduction gearbox is integrated with the traction motor at the front axle.
BYD e6 rear brakes and suspension
Rear Brakes and Suspension.

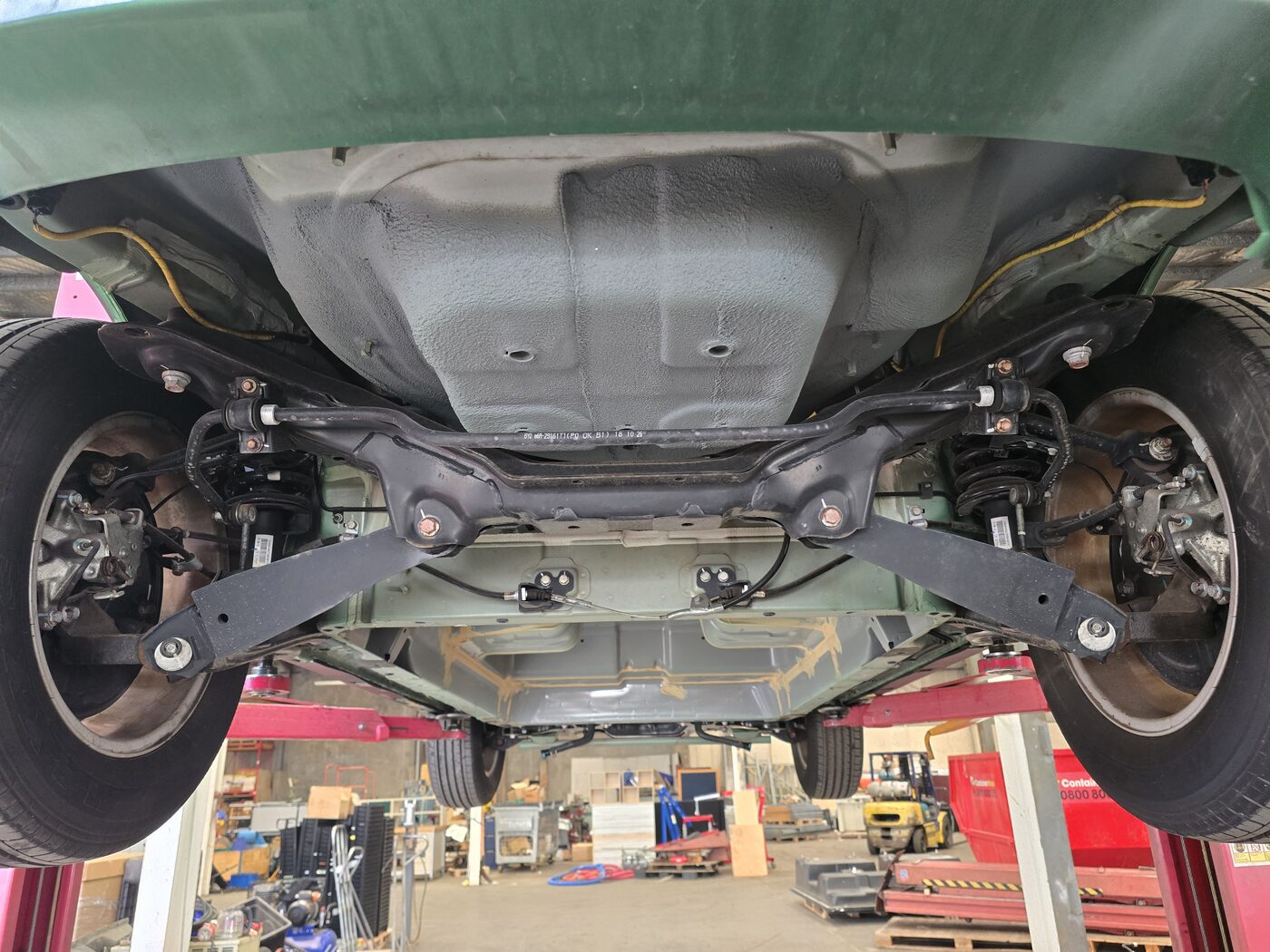

BYD e6 rear suspension and swaybar
Rear Suspension and Swaybar.
